Description
Features:
- Modern and flat design reader, less drilling work on elevator panel.
- Available to limit access to floors according to each guest and staff keycard’s authority.
- 8 relay outputs board with extendable feature, suitable for the high-rise hotel.
- Selectively to limit access to floors or limit to elevator’s button panel.
- Fully compatible with BIS Hotel
Benefit:
- Each relay box can install 4 piece relay boards.
- Dimension(H x W x D):

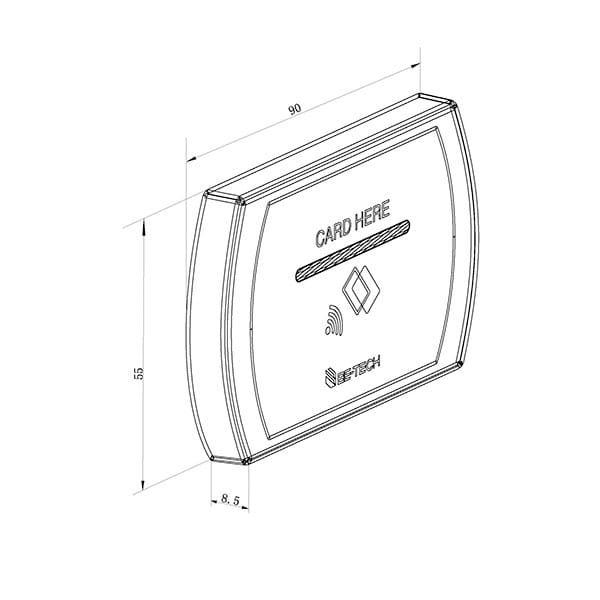

RFID reader: 90 x 55 x 8,5 (mm)
3,54 x 2,17 x 0,33 (inch)
Relay box: 370 x 230 x 72 (mm)
14,57 x 9,06 x 2,83 (inch)
EACH COMPLETE UNIT, SUPPLIED INDIVIDUALLY PACKED, CONSISTS OF:

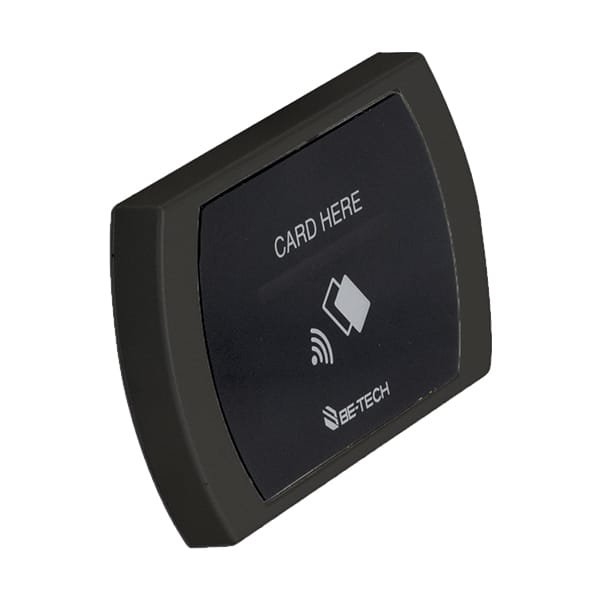

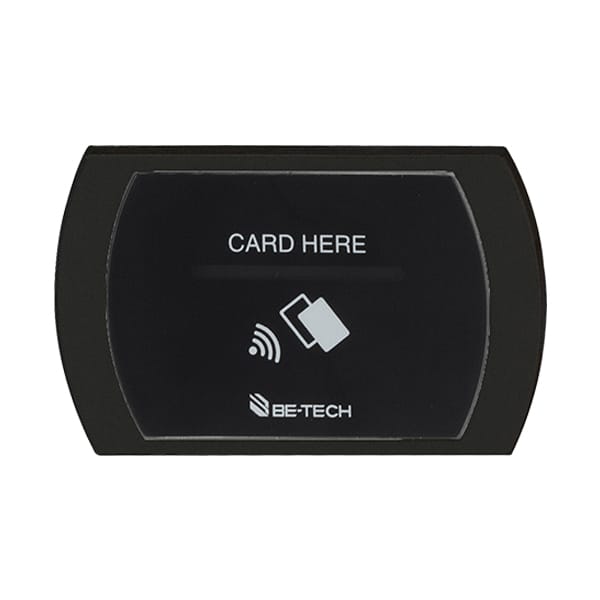

• RFID reader with front control case
• Relay board
• Dust proof cover
• 1.5m three-core cable
• 4m six-core cable
• Relay box in black steel (*)
• 5m three-core cable (*)
• 16m six-core cable (*)

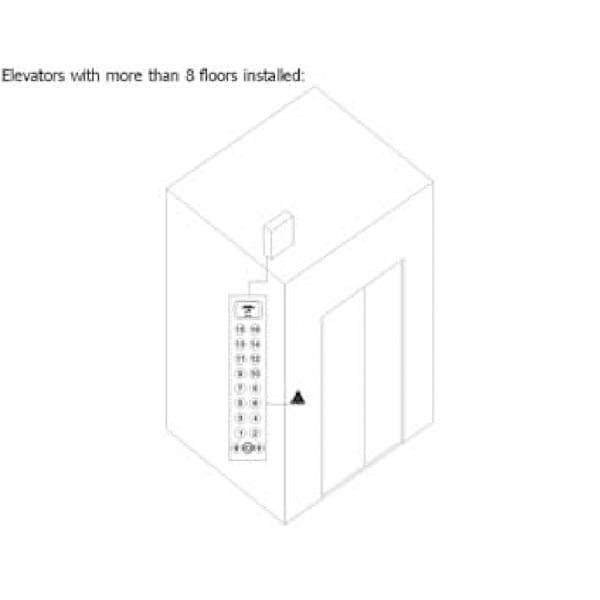

(*) only for the elevators with more than 8 floors.
Additional relay boards must be ordered in addition if needed.
